Sand Washing Machine Process
The sand washing process in a sand washing machine is designed to remove impurities like dust, silt, clay, and other unwanted fine particles from sand, resulting in cleaner and higher-quality sand.
01

Process

1. Feeding and Initial Screening (Optional):

Feeding: Sand, typically from a crusher or a stockpile, is fed into the sand washing machine. This can be done by a conveyor belt, loader, or other feeding mechanism.

Initial Screening (Optional): In some setups, particularly with larger sand washing machines or sand containing a significant amount of oversized material, the sand may first pass through a coarse screen. This removes larger rocks, debris, and unwanted materials that could damage the washing machine or reduce its efficiency.

02

Process

Screw Washers:

Agitation and Suspension: The screws agitate the sand-water mixture, loosening and suspending the fine particles (clay, silt, dust) in the water.

Classification (Separation): The heavier, cleaner sand settles to the bottom of the trough. The rotating screws move this settled sand uphill towards the discharge point. The dirty water, carrying the suspended fines, flows over the sides of the trough into a settling pond or water recycling system. The angle of the trough and the screw speed are adjusted to control the particle size separation. A steeper angle and higher speed will result in coarser sand being washed, while a shallower angle and slower speed will allow finer sand to be retained.

03

Process

Wheel Washers (Bucket Wheel Classifiers):

Washing: Sand and water are fed into a large tank.

Washing and Lifting: A large wheel with buckets attached around its perimeter rotates through the tank. The buckets scoop up the sand-water mixture.

Separation: As the wheel rotates, the fines and dirty water overflow the bucket, leaving the heavier, cleaner sand inside.

Dewatering and Discharge: As the bucket reaches the top of its rotation, the water drains out through perforations in the bucket. The sand then empties from the bucket onto a discharge chute, delivering clean, dewatered sand.

04

Process

Hydrocyclones:

Feeding: A slurry of sand and water is pumped into a conical vessel at high pressure.

Centrifugal Separation: The swirling action creates a powerful centrifugal force. The heavier sand particles are forced to the outer walls of the hydrocyclone and spiral downwards. The finer particles and water are drawn towards the center and discharged through the top (overflow).

Underflow (Sand Discharge): The clean sand, concentrated at the bottom of the hydrocyclone, is discharged through the underflow outlet. This sand is often then passed over a dewatering screen to remove excess water. Hydrocyclones are very efficient at removing very fine particles.

05

Process

Log Washers (For heavily contaminated sand):

Scrubbing and Washing: These machines are designed to handle sand and gravel that is heavily contaminated with clay, silt, and organic matter. They use two or more rotating logs (shafts) with paddles or blades to vigorously scrub and break down the clay and other contaminants.

Separation: The loosened contaminants are then washed away by water sprays, leaving cleaner sand and gravel. Log washers are often used as a pre-treatment stage before other types of sand washing equipment.

06

Process

Water Recycling (Crucial for Sustainability and Cost Efficiency):

Settling Ponds/Thickeners: The dirty water from the sand washing process, containing the suspended fines, is directed to a settling pond or a thickener. In a settling pond, the solids are allowed to settle out by gravity over time. Thickeners use chemical flocculants to accelerate the settling process.

Clean Water Recovery: The clarified water from the settling pond or thickener is then pumped back into the sand washing machine for reuse. This significantly reduces water consumption and minimizes environmental impact.

Sludge Disposal: The settled solids (sludge) from the settling pond or thickener need to be periodically removed and disposed of appropriately, often in a designated landfill or used for land reclamation purposes.

Filtration (Optional): For even higher water quality and closed-loop systems, the water may pass through a filtration system before being reused.

07

Process

Dewatering and Stockpiling:

Dewatering Screens (Often used after hydrocyclones or when needed for dryer sand): The clean sand discharged from the sand washing machine (especially from hydrocyclones) may still contain a significant amount of water. Dewatering screens use vibration to separate the water from the sand, producing a dryer product.

Stockpiling: The clean, dewatered sand is then typically conveyed to a stockpile for storage and subsequent use.

Sand Washing Machine Working Principle

Components

Components

1. Feeding System: Feed Hopper A large, open container where the raw sand and gravel are initially deposited. It's designed to provide a consistent and controlled flow of material into the machine. Feeder (Optional) A separate device (e.g., vibrating feeder, belt feeder) used to regulate the flow of material from the feed hopper into the main washing unit. This ensures a consistent and manageable feed rate.

2. Washing Unit: Washing Trough/Tank (or Wheel) The main housing or container where the washing and separation processes take place. For wheel washers, this is the outer frame that supports the rotating wheel. Impeller/Paddle System (or Bucket Wheel) This is the core of the washing process Screw Impeller (for Screw Washers) A large helical screw that rotates within the trough, agitating the material and conveying it towards the discharge end. The screw is usually made of wear-resistant materials like high-manganese steel. Bucket Wheel (for Wheel Washers) A large rotating wheel with multiple buckets attached around its circumference. The buckets scoop up the sand, lift it out of the water, and discharge it after washing. Buckets are typically made of steel or durable plastic. Paddles (for Log Washers) Rotating logs with blades or paddles that aggressively mix and scrub the material.

3. Water System: Water Inlet/Spray Nozzles Provides a continuous supply of water into the washing trough. Spray nozzles may be used to improve the distribution of water and enhance the washing process. Overflow Weirs/Discharge Ports Openings or channels at the top of the washing trough that allow the dirty water containing suspended impurities to overflow and be discharged from the machine. Water Pump (Often External) Pumps water from a source (e.g., settling pond, recycled water) to the sand washing machine. Piping and Hoses Connects the water pump to the water inlet on the washing machine.

4. Dewatering and Discharge System: Screening Deck/Perforated Buckets (Wheel Washers) The buckets in a wheel washer often have perforated bottoms or integrated screens that allow water to drain as they lift the sand. Dewatering Screen (Often Separate) A vibrating screen placed after the main washing unit to remove excess water from the cleaned sand. Discharge Chute/Conveyor A chute or conveyor belt that collects and transports the cleaned and dewatered sand away from the washing machine.

5. Structural Components: Frame and Support Structure A sturdy frame made of steel or other strong materials that supports all the components of the sand washing machine. Legs/Foundation Provides a stable base for the machine and ensures that it is properly leveled.

6. Optional Components/Accessories: Fine Sand Recovery System Includes hydrocyclones, thickeners, or other devices to recover fine sand particles that are typically lost in the overflow water. Control Panel Houses the electrical controls for the machine, including start/stop buttons, speed controls, and safety features. Lubrication System Provides automatic or manual lubrication to the bearings and other moving parts to reduce wear and tear.

Working Principle

Working Principle

1. Feeding and Initial Dilution: Material Input Raw sand and gravel (often containing impurities like clay, silt, dust, and organic matter) are fed into the machine, typically through a feed hopper or conveyor belt. Water Addition A significant amount of water is added to the raw material. This creates a slurry, making the separation process more effective. The water helps to suspend the lighter, unwanted particles.

2. Agitation and Scrubbing (Key to Cleaning): Impeller/Paddle/Bucket System This is the heart of the washing machine. It consists of rotating components like Screw Impeller (Screw Sand Washer) A large screw rotates within a trough. Bucket Wheel (Wheel Sand Washer) A large wheel with multiple buckets scoops up and discharges the material. Paddles (Log Washer) Rotating paddles with blades or paddles mix the material and agitate it. Purpose of Agitation The rotating impeller/paddles/buckets perform the following Scrubbing The abrasive action of the sand particles against each other, aided by the impeller's movement, dislodges clay and silt particles that are clinging to the sand grains. Mixing Thoroughly mixes the sand, water, and impurities to ensure effective separation. Suspension Keeps the lighter impurities suspended in the water.

3. Separation and Overflow: Rising Current/Overflow System The turbulence created by the impeller suspends the lighter impurities. The overflowing water carries these lighter particles (clay, silt, dust, organic matter) out of the machine through overflow weirs or designated discharge ports. Gravity Settling (For Heavier Clean Sand) The heavier, cleaner sand and gravel particles, due to their higher specific gravity, tend to settle to the bottom of the washing trough or bucket.

4. Dewatering and Discharge: Dewatering After separation, the clean sand needs to be dewatered. This is achieved through various methods depending on the machine type Screening The buckets in a wheel washer typically have perforated bottoms or integrated screens that allow water to drain as they lift the sand. Screw washers often discharge onto a dewatering screen. Inclined Plane The sand might be discharged onto an inclined plane, allowing water to drain due to gravity. Vibrating Screen A vibrating screen removes excess water from the final product. Discharge The cleaned and partially dewatered sand is then discharged from the machine, ready for further processing or use.

Sand Washing Machine Features
A sand washing machine is a key piece of equipment used in industries such as construction, mining, and aggregate production to clean and separate sand from impurities like clay, silt, dust, and other particles.

Efficient Cleaning of Sand

Impurity Removal: Sand washing machines effectively remove impurities such as clay, silt, dust, and other foreign particles from sand. Improved Quality: Produces cleaner, higher-quality sand suitable for use in concrete production, road construction, and other applications requiring clean aggregates.

High Efficiency

High Washing Efficiency: The machines use water and mechanical agitation to thoroughly clean the sand, effectively removing fines and contaminants. Water Recycling Systems: Many sand washing machines are designed with water recycling systems to minimize water wastage.

Large Capacity

High Throughput: Sand washing machines can process large volumes of material, ensuring continuous operation in high-demand environments. Large Capacity Drums or Buckets: Designed for handling large amounts of sand, suitable for large-scale production or mining operations.

Durability and Robustness

Heavy-Duty Construction: Built with durable materials such as steel or cast iron, sand washing machines are designed to withstand harsh environments and heavy use. Corrosion Resistance: Machines are often coated or made with corrosion-resistant materials to ensure a long lifespan, especially in high-moisture or abrasive environments.

Water Conservation Features

Water Recycling System: Many modern sand washing machines come equipped with water recycling systems that help capture and reuse water during the washing process, reducing water consumption. Eco-Friendly: By reusing water, these machines help minimize the environmental impact of sand washing, especially in areas with water scarcity.

Adjustable Settings

Control Over Sand Quality: Some models allow users to adjust washing intensity or water flow to control the degree of cleaning and the removal of fine particles. Versatile Application: Adjustable settings help customize the machine’s performance for different types of material and cleaning requirements.

Customizable and Modular Design

Modular Components: Some sand washing machines come with modular components that can be adapted to specific customer requirements. Customizable Settings: Offers flexibility to adjust washing processes based on the type of material, such as coarse or fine sand.

Related Video
YUDE Workshop Show

YUDE Workshop Show

Workshop Production

Workshop Production

Jaw Crusher Manufacturing Video

Jaw Crusher Manufacturing Video

Jaw Crusher Spare Parts Show

Jaw Crusher Spare Parts Show

YUDE Mining Spare Parts Show

YUDE Mining Spare Parts Show

Mining Equipment Spare Parts Display

Mining Equipment Spare Parts Display

Mining Spare Parts

Mining Spare Parts

Factory Production

Factory Production

Industry Application
Mining and Recycling of Materials

Mining and Recycling of Materials

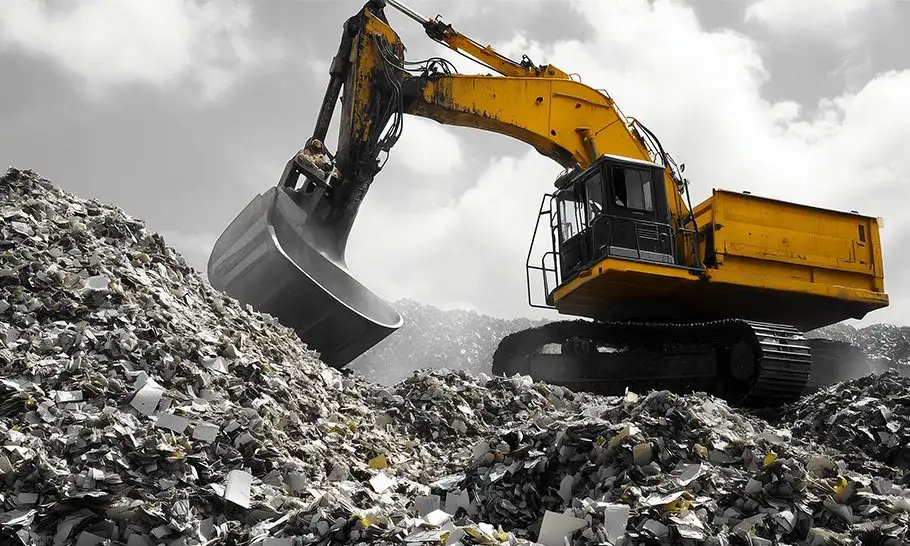

Cleansing Recycled Sand: Recycled sand from construction and demolition materials is cleaned using a sand washing machine to make it suitable for reuse.

Mineral Separation: In certain mining operations, washed sand can be used to separate valuable minerals like gold, which are mixed with sand.

Environmental Protection

Environmental Protection

Water Recycling Systems: Many modern sand washing machines include water recycling systems that help reduce water consumption by filtering and reusing the water used in washing processes.

Efficient Waste Management: Sand washing machines help in effectively managing wastewater, reducing the environmental impact of sand processing operations.

Aggregate Production

Aggregate Production

Sand and Gravel Sorting: In aggregate plants, a sand washing machine helps separate finer materials from coarse aggregates, improving the overall product quality.

Recycling of Waste Materials: Helps to clean and reclaim sand from recycled materials like construction and demolition debris, ensuring minimal wastage.

Construction Industry

Construction Industry

Concrete Production: Sand is washed to remove impurities before being used in concrete production, improving the strength and durability of concrete.

Road Construction: Washed sand is used for making road bases, asphalt, and in the production of concrete for road structures.

Backfilling and Landscaping: Clean sand is used in landscaping, backfilling, and other civil works requiring high-quality aggregates.

Jaw Crusher FAQ
Let us bring you better service

How does a sand washing machine contribute to environmental protection?

Water Recycling: Many machines are designed to recycle water, reducing the demand on fresh water sources.
Reduced Pollution: Waste materials like sludge are often collected and disposed of responsibly, reducing environmental contamination.
Energy Savings: Efficient washing processes consume less energy and reduce overall environmental impact.

How to maintain a sand washing machine?

Regular maintenance ensures optimal performance:
Inspect and Clean Parts: Periodically clean and inspect components like the bucket wheel, spiral, or vibratory screen for wear.
Lubricate Bearings and Motors: Regular lubrication of rotating parts prevents premature wear.
Check Water Quality: Ensure that the water used in the machine is clean and free of debris.
Monitor Water Recycling System: Regularly check the water filtration or recycling system to avoid blockages.
Replace Worn Parts: Replace worn-out components, such as brushes, screens, and bearings, to prevent inefficiencies.

What are the common problems with sand washing machines?

Clogging: Fine particles or debris can clog the washing system, reducing efficiency.
Excessive Wear: The rotating components (such as wheels and spirals) can wear out due to abrasion from sand and other materials.
Water Contamination: In some cases, washing machines may discharge excess water with impurities, requiring a proper drainage or settling system.
Imbalanced Movement: Uneven or jerky movement in rotating parts can cause inefficiency and damage to the machine.
Clogged or Broken Pumps: Pumps that control the water flow may get blocked or damaged, causing disruptions in the washing process.

How do I choose the right sand washing machine?

Consider the following factors when selecting a sand washing machine:
Material Type: Different machines are designed to wash specific materials (e.g., fine sand vs. coarse gravel).
Capacity: Match the washing machine’s capacity to your processing needs.
Water Availability: Choose a model that meets your water supply and recycling needs.
Product Quality: If high-quality sand is required, choose a machine that offers efficient washing and minimal impurities.
Energy Efficiency: Look for models with low energy consumption and water recycling capabilities.

What industries use sand washing machines?

Construction: For producing clean sand for concrete, masonry, and road construction.
Mining: In mineral extraction to wash ores and remove impurities.
Recycling: To clean aggregates and other materials for reuse in construction projects.
Agriculture: Used in some cases to wash agricultural products like seeds or soil aggregates.
Environmental Services: For washing contaminated sand or materials in remediation efforts.

What are the benefits of using a sand washing machine?

Cleaner Sand: Removes impurities, resulting in high-quality sand suitable for construction and other applications.
Reduced Contamination: Minimizes the presence of clay, silt, and dust, improving the quality of the final product.
Water Conservation: Some models are designed to recycle water, reducing the need for additional water.
Higher Efficiency: The washing process increases the efficiency of downstream processes such as concrete production.
Environmental Protection: Prevents waste materials from being discharged into the environment by collecting and recycling water and waste.

What materials can be washed using a sand washing machine?

Sand: Fine, medium, and coarse sand for construction and concrete.
Gravel: Coarse aggregates for use in construction.
Mining Materials: Materials such as ore tailings and mineral sands.
Recycled Aggregates: Concrete and asphalt aggregates can also be washed for reuse.

How does a sand washing machine work?

The sand is fed into the machine, where it is mixed with water.
The water helps separate fine particles like clay, silt, and dirt from the sand.
The sand then moves through the washing mechanism (bucket wheel, spiral, or vibrator), which agitates the material, allowing impurities to be washed away.
Clean sand is discharged, while the waste slurry is removed through a drainage system or a settling pond.

What is a sand washing machine?

A sand washing machine is a device used to remove impurities such as clay, silt, dust, and other contaminants from sand. It uses water and mechanical agitation to wash and clean the sand, making it suitable for construction, concrete, and other applications.
