Vibrating Screens

Vibrating screens are an important piece of equipment used in various industries to separate and classify materials based on size, shape or type. It works by allowing material to pass through screens or meshes of different sizes, allowing smaller particles to pass through while retaining larger particles. Vibrating screens are widely used in mining, construction, recycling and agriculture, such as grading aggregates, removing debris or sorting raw materials.

Get a quote
Vibrating Screens
Our Capabilities
A Jaw Crusher is widely used in various industries to crush different types of materials. Its primary function is to reduce large rocks or ores into smaller, more manageable sizes.
Fertilizers

Fertilizers

Application: Agriculture and horticulture

Screening: Removing oversized lumps or foreign materials in fertilizer production to ensure quality control.

Recyclable Materials

Recyclable Materials

Application: Waste management and recycling plants

Screening: Sorting materials like plastics, paper, and metals from mixed waste streams.

Ore

Ore

Application: Mining for metals (e.g., gold, iron, copper)

Screening: Separating ore into different sizes before further processing in beneficiation or refining.

Crushed Stone

Crushed Stone

Application: Aggregate production for construction, concrete, and asphalt

Screening: Sorting crushed stone by size for different construction applications.

Coal

Coal

Application: Power generation, steelmaking, and industrial processes

Screening: Separating coal into different sizes to optimize combustion or further processing.

Sand and Gravel

Sand and Gravel

Application: Construction, road base, and landscaping materials

Screening: Used to separate fine sand from larger gravel particles for construction or filtration.

Vibrating Screens screening process
The screening process using vibrating screens is a mechanical separation technique that uses a vibrating surface with openings of a specific size (mesh) to separate materials based on their particle size.
01

Process

1. Feed Introduction:

The material to be separated (the feed) is introduced onto the vibrating screen surface. This is typically done using a feeder, such as a conveyor belt, vibrating feeder, or rotary feeder.

The feeding rate is crucial. An appropriate feeding rate ensures optimal screening efficiency. Too much material can overload the screen, reducing separation accuracy and potentially damaging the equipment. Too little material can lead to underutilization of the screen.

The distribution of the feed across the screen width is also important. Even distribution maximizes the use of the screen surface.

02

Process

2. Vibration and Stratification:

The vibrating screen imparts motion to the material. This motion, which can be linear, circular, or elliptical depending on the screen design, causes the material to stratify.

Stratification is the process where the smaller particles tend to sink towards the screen surface, while the larger particles rise to the top. This happens due to differences in particle size and density, and the vibrations help overcome friction and inertia.

03

Process

3. Screening and Separation:

The smaller particles that have stratified near the screen surface pass through the screen openings (mesh). These are known as the "undersize" or "fines."

The larger particles that are larger than the screen openings cannot pass through and remain on top. These are known as the "oversize" or "coarse" fraction.

The vibrating motion helps to dislodge particles that may be blocking the screen openings, maintaining the efficiency of the separation.

04

Process

4. Material Discharge:

The undersize material falls through the screen and is collected below.

The oversize material travels along the screen surface, propelled by the vibration and angle of the screen, until it is discharged at the opposite end.

Multiple screen decks (layers) can be stacked on top of each other, with each deck having a different mesh size. This allows for separating the feed material into multiple size fractions in a single operation.

Vibrating Screens Working Principle

Components

Components

1. Screening Body/Frame/Base: Main Frame/Base The structural support that holds all the other components together. It's typically made of heavy-duty steel to withstand the vibration and load. Screen Box/Deck Support Frame A frame or structure specifically designed to support the screen deck(s). It's often separate from the main frame to allow for easier screen changes. Feed Hopper Where the material to be screened is introduced into the machine. Often includes a feed control mechanism (e.g., adjustable gate). Discharge Chutes/Outlets Channels or openings where the separated material fractions are discharged. There's usually a separate chute for each size fraction.

2. Screening Mechanism: Screen Deck(s) The platform(s) that hold the screen mesh or plates. Multi-deck machines have multiple decks stacked vertically for multiple size separations. Screen Mesh/Plate The actual screening surface. Woven Wire Mesh Common for various particle sizes. Perforated Plates Used for larger particle sizes and more robust applications. Polyurethane Screens Durable and wear-resistant, often used for abrasive materials. Rubber Screens Offer good abrasion resistance and noise reduction. Screen Tensioning System Mechanisms to securely hold and tension the screen mesh, ensuring proper vibration and preventing sagging. This may include clamps, bolts, or other tensioning devices.

3. Vibration System: Electric Motor Provides the power to drive the vibrator. Vibrator/Exciter Generates the vibratory force. This can be one of several types Eccentric Vibrator (Unbalanced Motor) An electric motor with unbalanced weights on its shaft. As the motor rotates, the unbalanced weights create a centrifugal force. Electromagnetic Vibrator Uses electromagnets to create oscillating motion. Pneumatic Vibrator Uses compressed air to generate vibration. Eccentric Weights The adjustable weights on the vibrator that control the amplitude of the vibration. Changing the weight or position affects the intensity of the vibration. Shaft(s) and Bearings Support the rotating components of the vibrator. Bearings are critical for smooth operation and longevity. Couplings and Drive Belts (if applicable) Connect the motor to the vibrator and transmit power.

4. Suspension and Isolation System: Springs/Rubber Mounts/Air Springs These isolate the vibration of the screening body from the surrounding structure, reducing noise and preventing damage to the building. Dampers (optional) Help to control the amplitude of the vibration and prevent excessive bouncing.

5. Control and Monitoring System: Control Panel Contains the switches, buttons, and indicators for starting, stopping, and adjusting the machine. Variable Frequency Drive (VFD) (optional) Allows for precise control of the motor speed and, therefore, the vibration frequency. Sensors (optional) Monitor vibration levels, motor temperature, and other parameters. Emergency Stop Button For immediate shutdown in case of malfunction.

6. Cleaning System (Optional): Bouncing Balls (Rubber or Plastic) Placed beneath the screen mesh to bounce and dislodge stuck particles, preventing blinding. Brushes Rotating or stationary brushes that clean the screen surface. Ultrasonic Vibration System Uses high-frequency sound waves to vibrate the screen mesh and prevent clogging. Air Knives/Air Blasts Use jets of air to clean the screen surface.

Working Principle

Working Principle

1. Generating Vibration: The heart of the machine is a vibrating mechanism. This typically consists of Electric Motor Provides the power to drive the vibrating mechanism. Eccentric Weights (Unbalanced Masses) Mounted on the motor shaft or a separate shaft, these unbalanced weights rotate. As they rotate, they create a centrifugal force. Vibration Exciter (Vibrator) Some machines have a dedicated vibrator unit, often using electromagnetic or pneumatic principles to create oscillations. The rotating eccentric weights generate a vibratory force. The magnitude and direction of this force are determined by the weight, speed of rotation, and the angle of the weights relative to each other.

2. Transferring Vibration to the Screen(s): The vibrating force is transmitted to the screening deck(s). These decks hold the screen mesh or plate. The entire screening structure, including the deck(s), is mounted on springs or rubber mounts or other flexible supports. This allows the deck to vibrate freely while isolating the vibration from the surrounding structure and reducing noise.

3. Material Feeding and Distribution: Material to be screened is fed onto the uppermost screen (if there are multiple decks) or directly onto the screen. The vibration causes the material to bounce, stratify, and move across the screen surface.

4. Size Separation: The screen mesh has openings of a specific size. Undersize material (particles smaller than the screen openings) passes through the screen. Oversize material (particles larger than the screen openings) remains on top of the screen and is conveyed towards the discharge end.

5. Multi-Deck Screening (Optional): Many vibration screening machines have multiple decks, each with a different mesh size. The material passes through the series of screens, with progressively smaller openings. This allows for separating the material into multiple size fractions (e.g., coarse, medium, fine).

6. Discharge: The different size fractions are discharged from separate outlets at the end of each screen deck.

Screening Machine Features
Screening machines are essential in various industries for separating materials by size, ensuring product quality, and optimizing downstream processes.

Screening Mechanism

Utilizes screens (mesh or perforated plates) to separate materials based on particle size. Materials are fed onto the screen surface, where smaller particles pass through, and larger particles are retained.

Material Compatibility

Capable of handling a wide range of materials, including: Aggregates (sand, gravel, crushed stone). Coal, minerals, and ores. Recyclables (plastics, metals, construction waste). Organic materials (compost, soil).

Adjustable Configurations

Screen Size: Different apertures for coarse or fine screening. Deck Layers: Single, double, or multiple decks for simultaneous separation into various size ranges. Inclination Angle: Adjustable angles to optimize material flow and separation efficiency.

High Efficiency

Provides consistent particle separation with minimal oversize or undersize material. Enhances downstream processing by ensuring uniform feed material size.

Durability and Robust Design

Built with wear-resistant materials like stainless steel, rubber, or polyurethane. Designed for heavy-duty applications with minimal downtime.

Safety Features

Guards and covers to protect operators from moving parts. Emergency stop systems for quick shutdown in case of hazards.

Vibrating Screens Series

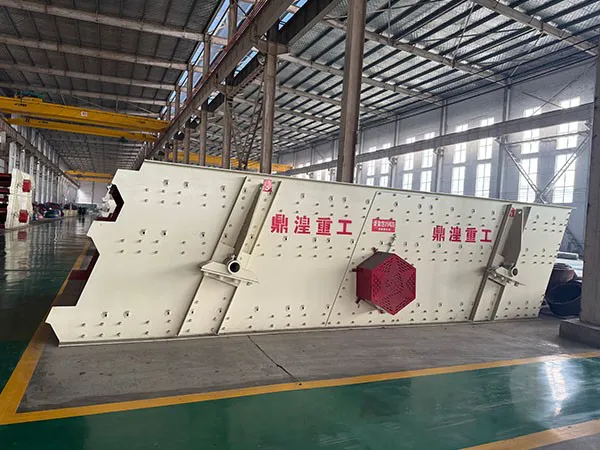

TS Series Vibrating Screen

TS Series Vibrating Screen

The TS series vibrating screen is a high-efficiency screening machine designed for separating and grading various materials in industries such as mining, construction, aggregate production, and recycling. Built with advanced technology, it provides precise screening performance, high durability, and low maintenance requirements, making it an ideal solution for processing bulk materials.

Read More
Related Video
YUDE Workshop Show

YUDE Workshop Show

Workshop Production

Workshop Production

Jaw Crusher Manufacturing Video

Jaw Crusher Manufacturing Video

Jaw Crusher Spare Parts Show

Jaw Crusher Spare Parts Show

YUDE Mining Spare Parts Show

YUDE Mining Spare Parts Show

Mining Equipment Spare Parts Display

Mining Equipment Spare Parts Display

Mining Spare Parts

Mining Spare Parts

Factory Production

Factory Production

Industry Application

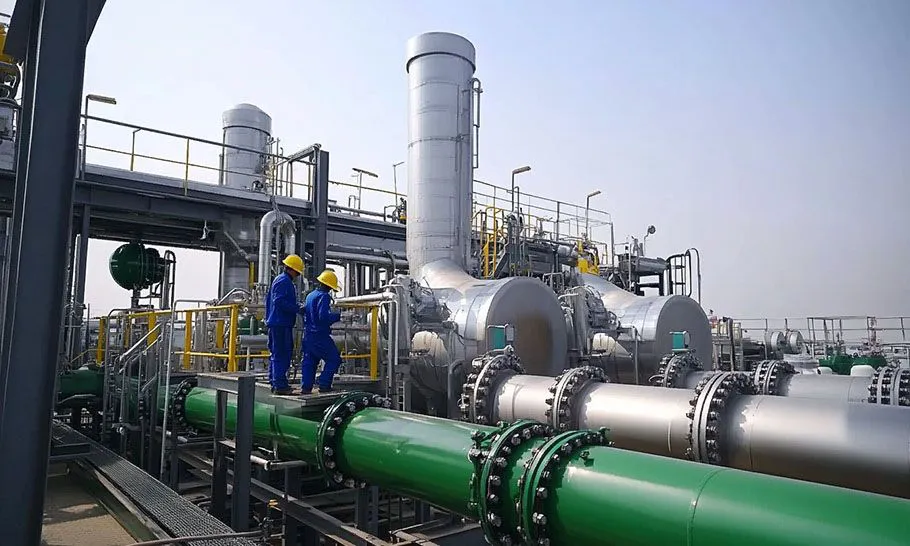

Energy Production

Energy Production

Biomass Screening: Separates oversized materials from wood chips, sawdust, and other biomass feedstocks.

Alternative Fuels: Screens materials like shredded tires or waste-to-energy inputs.

Agriculture

Agriculture

Seed and Fertilizer Screening: Classifies seeds and removes unwanted materials or impurities.

Soil Screening: Removes large debris or stones from soil for landscaping or farming.

Chemical Industry

Chemical Industry

Powder Grading: Screens chemicals, powders, and granules to ensure consistency in size for manufacturing processes.

Raw Material Sorting: Separates raw materials before processing.

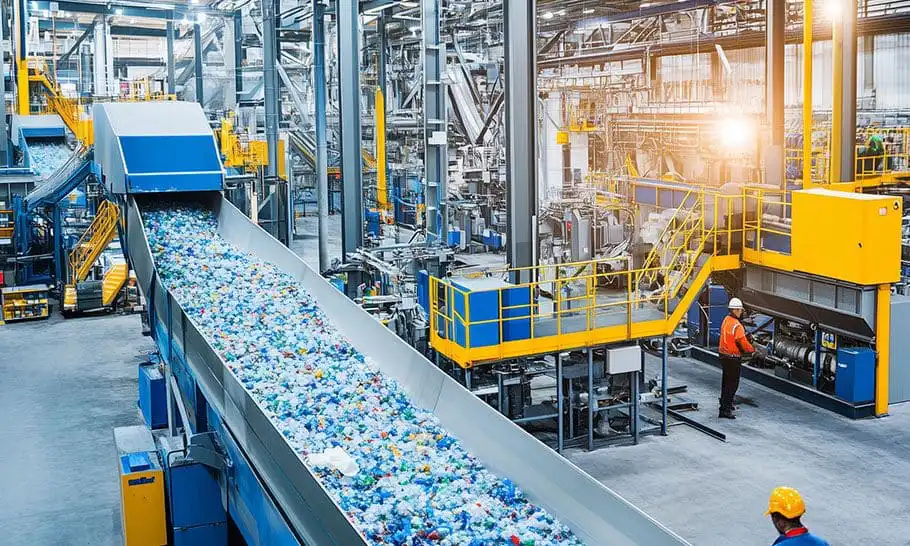

Recycling Industry

Recycling Industry

Waste Management: Screens and separates recyclable materials like plastics, metals, and glass.

Composting: Removes oversized material from compost, ensuring uniformity.

Construction and Building Materials

Construction and Building Materials

Aggregate Screening: Ensures that gravel, sand, and crushed stone meet specific size requirements for concrete or asphalt production.

Recycled Materials: Separates usable materials from construction and demolition debris.

Mining and Quarrying

Mining and Quarrying

Ore Screening: Separates valuable minerals from waste material.

Crushed Stone Classification: Sorts stones and gravel into different size ranges for construction.

Coal Processing: Removes impurities and classifies coal by size.

Jaw Crusher FAQ
Let us bring you better service

What is screen mesh, and why is it important?

Screen mesh refers to the woven material (usually made of wire or synthetic fibers) that forms the surface through which materials pass. The size of the mesh determines the size of particles that can pass through:
Larger Mesh: Allows larger particles to pass through and is used for coarse screening.
Smaller Mesh: Captures finer particles and is used for fine screening.

How do you choose the right screening machine?

Factors to consider when selecting a screening machine include:
Material Type: Different machines are suitable for various materials (e.g., fine vs. coarse, dry vs. wet).
Screen Size and Capacity: Match the size of the machine with the desired throughput and feed material size.
Screening Efficiency: Some applications require precise separation; choose machines with appropriate mesh size and motion.
Environmental Conditions: Ensure the machine is suited to the environment (e.g., wet, dusty, or high-temperature settings).

What are the different types of screening techniques used in machines?

Vibratory Screening: Uses vibrations to move material across a screen surface for separation.
Gyratory Screening: Uses circular motion to move materials along a screen, ideal for coarse separations.
Linear Screening: Employs linear motion for precise classification and consistent material movement.
Rotary Screening: Employs rotating drums with holes to sieve materials for smaller particles.

What are the main benefits of using a screening machine?

Efficient Size Separation: Ensures materials are sorted accurately by particle size.
Higher Throughput: Can process large volumes of materials quickly.
Improved Product Quality: Produces uniform material for downstream processing or sale.
Cost-Effective: Reduces the need for further crushing or processing by separating fine materials.
Versatility: Suitable for a wide range of industries and applications.

What materials can screening machines process?

Screening machines can handle a variety of materials, including:
Aggregates: Sand, gravel, crushed stone.
Mining Materials: Ores, coal, minerals.
Construction Waste: Concrete, asphalt, demolition debris.
Recyclable Materials: Paper, plastics, metals, glass.
Agricultural Products: Seeds, grains, and fertilizers.

How do vibrating screens work?

Vibrating screens use an electric motor to drive a set of vibrating mechanisms, which cause the screen mesh to move and vibrate. This motion helps material pass through the screen's mesh openings, separating it into different sizes based on the material's particle size.

What types of screening machines are there?

Vibrating Screens: Utilize vibrating motion to move materials across the screen surface, typically used in mining and aggregate production.
Rotary Screens: Use a cylindrical rotating drum to separate materials, commonly used in recycling and wastewater treatment.
Horizontal Screens: Feature a flat screening surface, offering high throughput for various materials.
Elliptical and Linear Screens: Used for fine screening with specific motion patterns for greater precision.

What is a screening machine?

A screening machine is a device that sorts materials by size using screens or sieves. It separates particles of different sizes by allowing smaller particles to pass through mesh openings while larger particles remain on top.
